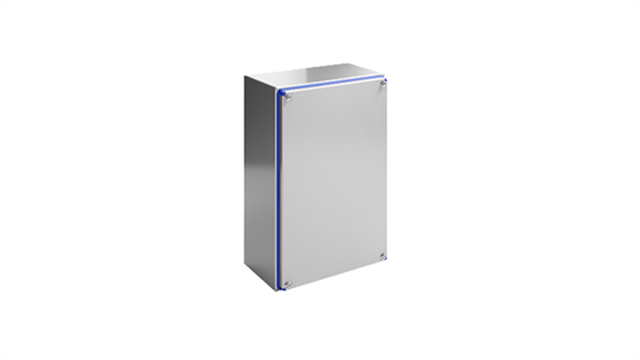

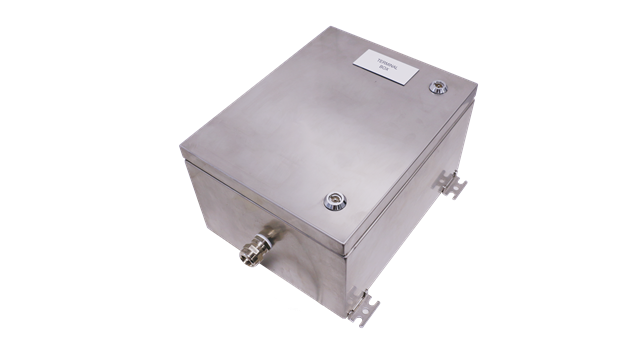

The terminal boxes series CE2K-.. .. ..-JB-X-... are able to operate in an ambient temperature from -52°C to +85°C and consist of enclosures having degree of protection IP65/66. The terminal boxes contain Ex e and/or Ex i terminals for incoming/outgoing cable connections. The lids of the terminal boxes are equipped with a silicon gasket.
The terminal boxes may have flanged walls and may be fitted with different types of terminals.
Enclosure material: SS316L
Certificates no.:
- ATEX: FIDI 25 ATEX 0033X
- IECEx: IECEx FIDI 25.0014X
- INMETRO: certificate available upon request
- ECASEx: certificate available upon request
* Dimensions and weights mentioned in the datasheet are approximate and subject to change without notice *
